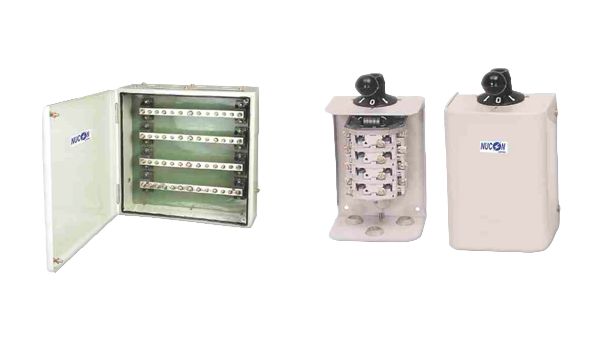

Busbar Chambers
Range
Rating : 32 Amps. to 1000 Amps. 415 V, 50 Hz
Execution : Four Pole
NUCON makes Busbar chambers provides flexibility and a systematic approach to ever increasing need for effective methods 0f the electrical distribution in domestic, commercial and industrial application. These has been speacially designed to meet technical requirements ensure the bus bas chamblers blend with the decor of the place of the installation. Through these busbar chambers various out going lines option are available from one incoming line.
L.T. Control Switches
Range
20 Amp & 32 Amp, 415V, 50Hz
| Version |
: |
ON-OFF Switches |
|
|
Reversible Switches |
|
|
Changeover Switches |
| Execution |
: |
D.P., TP & Four Pole |
Conformity To Standards
Conforms to IEC : 60947 - (P I & III), IS - 13947 - (P I & III)
Salient Features
The enclosure is made of sheet steel, rust protected, phosphatised and powder coated.
Ideal for all types of small drivers for direct switching and control of three phase A.C. Motors.
Moulded body made of DMC having glass fibre.
Bakelite Fuse Fitting (Hrc Fuse Holders)
NUCON offers versatile range of fuse holders consistingof fuse carriers & Fuse bases moulded out of high grade flame retardant, non-hygroscopic phenolic moulding powder conforming to IS : 1300 / BS : 771 with a high gloss black finish. Carrier contacts and base contacts are mounted using locating ridges formed on the mouldings, assuring perfect alignment. Spring pressure of clips in 32A., 63A. & 125A. Fuse holders and a speacial high pressure metal backing stirrup in Fuse Holders provided lasting contact surface. The stirrups are not required to carry current.
