Rewireable Type Fuse Base and Carriers


Range

A - 16 - 32 Amps. 240 V, 50 Hz
B - 16 - 200 Amps. 415 V, 50 Hz
C - 63 - 500 Amps. 415 V, 50 Hz with Extensions Strip


Conformity To Stands

IS : 2086 - 1993.


Technical Features

  • For current carrying parts, pure electrolytic copper used with duly tin plated.
  • Ceramic of high quality in cream shade.
  • Suitable for aluminium / copper conductor.
  • Mounting contact 'U' for phosphorous bronze to ensure perfect matching of male & female parts for long life.


    • Hrc Fuses

    NUCON range of low voltage fuse link has been designed to meet the requirement of modern era in industrial installations. Fuses are protective device in which the melting or more fusible elements open a circuit and interrupt the current if the current exceed a set value for a given period of time.


    Range

    BOLTED DESIGN (BS type) - 16A - 630A, 415V, 50Hz
    BLADE TYPE (DIN type) - 32A - 630A, 415V, 50Hz


    Conformity To Standards

    Conforms to IEC : 60269 - 1 & 2 - 1, IS : 13703 - 1 & 2 - 1

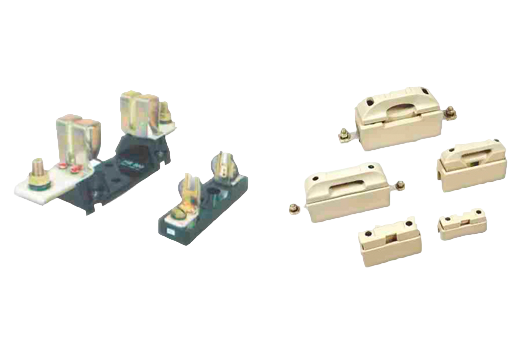

    Fuse Bases

    NUCON fuse bases are used for installing HRC fuse in line to protect from overloading / short circuit.
    Open type fuse bases are available for mounting of DIN type fuse linksin current rating 6-800 Amps.
    These fuse bases confirm to IS : 13703 and IEC:269 specifications.


    Moulding / Casting

    The fuse bases consists a powder coated metallic strip, on which SMC moulding is mounted which is non-inflammable , non-hygroscopic and hard smooth finish.
