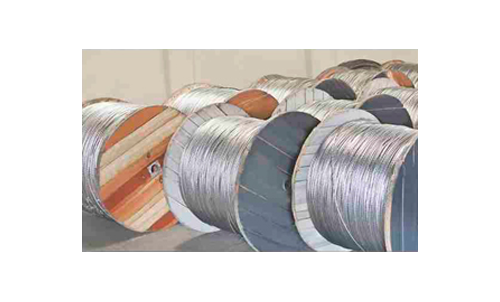

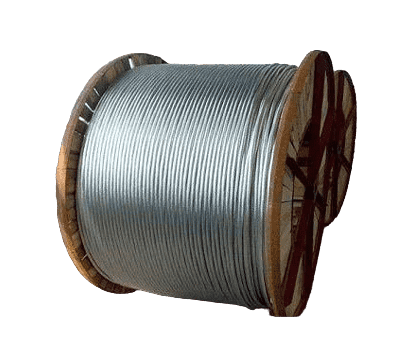

Aluminium Conductors

ACSR conductors consist of a solid or stranded steel core surrounded by strands of aluminium (E.C.Grade). ACSR conductors are available in a wide range of steel, containing carbon from 0.5% to 0.85%. The higher strength ACSR conductors are used for river crossings, overhead ground wires, installation involving extra long spans etc. Against any given resistance of conductor,ACSR may be manufactured for having a wide range of tensile strength as per the requirement.

The principle advantage of these conductors are high tensile strength so that they are used for longer spans with less supports. Due to greater diameter of ACSR conductors a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.

AAC conductors are made out of Hard drawn EC Grade(min 61% IACS) Aluminium wires stranded in successive layers in opposite direction to form the Aluminium stranded AAC Conductor up to 61 wires.

All aluminium bare conductors are used for aerial distribution lines having relatively short spans, aerial feeder and bus bars of substations.

This conductors is made from aluminium - magnesium - silicon alloy of high electrical conductivity containing enough magnesium silicide to give it better mechanical properties after treatment. These conductors are generally made out of aluminium alloy 6201. AAAc CONDUCTOR has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR CONDUCTORS on equal diameter basis.

AAC conductors is made from aluminium - magnesium - silicon alloy of high electrical conductivity containing magnesium (0.6-0.9%)& silicon (0.5-0.9%) to give it better mechanical properties after treatment. AAC conductors are generally made out of aluminium alloy 6201 (minimum conductivity is 54%). AAAc CONDUCTOR has a better corrosion resistance and better strength to weigh tratio and improved electrical conductivity than ACSR CONDUCTORS on equal diameter basis.

Additionaly, products are offered confirming to IEC, DIN, ASTM, SS and other international specification Type tests of products are carried out periodically at reputed third party NABL accredited labs.

The raw material to be used in the manufacture of the conductor is EC grade aluminium (99.7% purity) wire rod and steel wires uniformly coated with electrolytic high grade (99.95%) pure zinc from reputed supplier in india and imported.

We only use compex Dies (Instead of tungsten carbide or diamond Die) to achieve pricise size and finishing of wire.

The Routine Test Report, Type Test & GTP Certificate on our products are provided with every shipment.

The adequate instruments in our fully equipped ISI standard laboratory for following tests : Breaking load, Resistance, Wrapping, Lay Ratio, Size, Dip Test, Torsion, Elongation, Size measurement and Zinc coating Test.
